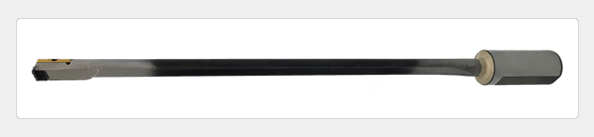

INSERT GUNDRILL : IDH SERIES

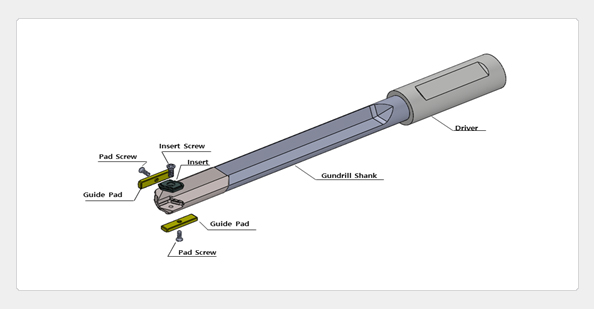

DONGSAN TOOL IDH SERIES GUNDRILL consists of a cutting insert and two guide pads, and is a tool that can be used for deep hole drilling like conventional brazing gun drills. By applying a 4-segment chip breaker to the insert, deep hole drilling is possible at twice the drilling speed compared to conventional brazing gun drills.
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
IDH INSERT GDUNRILL Characteristics

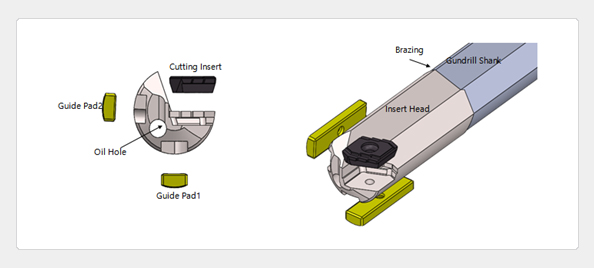

- INSERT GUNDRILL with one cutting Insert & two guide pads
- Cutting insert has two cutting edges & two polished guide wipers for high hole surface quality
- Longer guide pad provides better straightness & hole size accuracy compared with other companies
- Chip breaker makes improved drilling performance & smooth surface roughness by splitting long chip
into 4 small chips
- Hole Dia. accuracy : -0.03 ~ +0.02mm
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Advantage
|
|
1. Drilling speed improved by chip breakers and PVD coating
|
|
2. Hole surface quality improved by chip breakers and PVD coating
|
|
3. Tool life improved by chip breakers and PVD coating
|
|
4. Hole size accuracy improved by polished body, insert and pads
|
|
|
| |
|
|
| |
|
|
| |

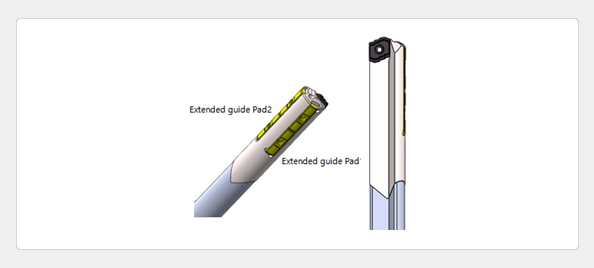

Insert GUNDRILL for Cross Holes - 2 row Pads
- Vibration reduction with extended guide pads for stable cross drilling performance
- 45mm guide length for better performance during cross drilling
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |

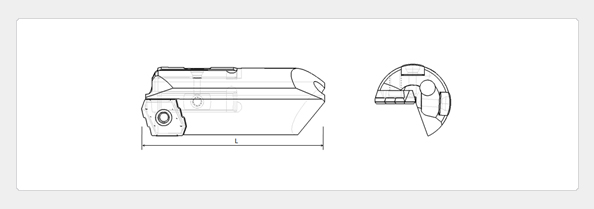

Insert Gundrill Head Spec
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Diameter
D(mm)
|
Head Length
L(mm)
|
Insert
|
Guide pad
|
|
Insert
|
Insert Screw
|
Wrench
|
Pad
|
Pad Screw
|
Wrench
|
|
14.00 ~ 16.59
|
44
|
IDI1516
|
DST-2505S
(M2.5)
|
T8
|
IDP1516
|
DST-2252
(M2.2)
|
T7
|
|
16.60 ~ 18.59
|
47.5
|
IDI1718
|
DST-2555S
(M2.5)
|
T8
|
IDP1718
|
DST-2555
(M2.5)
|
T7
|
|
18.60 ~ 20.59
|
52.5
|
IDI1920
|
DST-3062
(M3.0)
|
T9
|
IDP1920
|
DST-2555
(M2.5)
|
T7
|
|
20.60 ~ 22.59
|
52.5
|
IDI2122
|
DST-3072
(M3.0)
|
T9
|
IDP2122
|
DST-2565
(M2.5)
|
T7
|
|
22.60 ~ 25.59
|
52.5
|
IDI2325
|
DST-3508
(M3.5)
|
T15
|
IDP2325
|
DST-2565
(M2.5)
|
T7
|
|
25.60 ~ 28.59
|
52.5
|
IDI2628
|
DST-3585
(M3.5)
|
T15
|
IDP2628
|
DST-2565
(M2.5)
|
T7
|
|
28.60 ~ 33.30
|
58
|
IDI2932
|
DST-0510
(M5.0)
|
T20
|
IDP2932
|
DST-3072
(M3.0)
|
T9
|
|
|
| |
|
|
| |
|
|
| |
Order Specification for IDH INSERT GUNDRILL
- Diameter Range : ¥Õ14mm ~ 33mm
- Maximum Length : 3000mm
- Application Machine : Gundrill Machine, CNC & MC
- Special size available
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Diameter
Range(mm)
|
Main
Diameter(mm)
|
Insert
|
Guide pad
|
|
Insert
|
Insert Screw
|
Wrench
|
Pad
|
Pad Screw
|
Wrench
|
|
14.00 ~ 16.59
|
IDH_14.00/IDH_14.02
|
IDI1516
|
DST-2505S
(M2.5)
|
T8
|
IDP1516
|
DST-2252
(M2.2)
|
T7
|
|
IDH_15.00/IDH_15.02
|
|
IDH_16.00/IDH_16.02
|
|
16.60 ~ 18.59
|
IDH_17.00/IDH_17.02
|
IDI1718
|
DST-2555S
(M2.5)
|
T8
|
IDP1718
|
DST-2555
(M2.5)
|
T7
|
|
IDH_18.00/IDH_18.02
|
|
18.60 ~ 20.59
|
IDH_19.00/IDH_19.02
|
IDI1920
|
DST-3062
(M3.0)
|
T9
|
IDP1920
|
DST-2555
(M2.5)
|
T7
|
|
IDH_19.50/IDH_19.52
|
|
IDH_20.00/IDH_20.02
|
|
20.60 ~ 22.59
|
IDH_21.00/IDH_21.02
|
IDI2122
|
DST-3072
(M3.0)
|
T9
|
IDP2122
|
DST-2565
(M2.5)
|
T7
|
|
IDH_22.00/IDH_22.02
|
|
22.60 ~ 25.59
|
IDH_23.00/IDH_23.02
|
IDI2325
|
DST-3508
(M3.5)
|
T15
|
IDP2325
|
DST-2565
(M2.5)
|
T7
|
|
IDH_24.00/IDH_24.02
|
|
IDH_24.50/IDH_24.52
|
|
IDH_25.00/IDH_25.02
|
|
25.60 ~ 28.59
|
IDH_26.00/IDH_26.02
|
IDI2628
|
DST-3585
(M3.5)
|
T15
|
IDP2628
|
DST-2565
(M2.5)
|
T7
|
|
IDH_27.00/IDH_27.02
|
|
IDH_28.00/IDH_28.02
|
|
28.60 ~ 33.30
|
IDH_29.00/IDH_29.02
|
IDI2932
|
DST-0510
(M5.0)
|
T20
|
IDP2932
|
DST-3072
(M3.0)
|
T9
|
|
IDH_30.00/IDH_30.02
|
|
IDH_31.00/IDH_31.02
|
|
IDH_32.00/IDH_32.02
|
|
IDH_33.00/IDH_33.02
|
|
|
| |
|
|
| |
|
|
| |
IDI Insert Tip Specification
- Precise Insert tip with five-polished surfaces for hole size accuracy
- Super micro grain carbide & hybrid multi-layer PVD coating for improved deep-hole drilling performance
- Applicable to various materials such as General carbon steel, cast iron, difficult-to-cut material & STS
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Insert
|
Diameter
Range(mm)
|
W
|
H
|
T
|
Screw
|
Wrench
|
|
IDI1516
|
14.00 ~ 16.59
|
8.6
|
10.5
|
2.75
|
DST-2505S
|
M2.5
|
T8
|
|
IDI1718
|
16.60 ~ 18.59
|
9.6
|
11.5
|
3.25
|
DST-2555S
|
M2.5
|
T8
|
|
IDI1920
|
18.60 ~ 20.59
|
10.6
|
13
|
3.45
|
DST-3062
|
M3.0
|
T9
|
|
IDI2122
|
20.60 ~ 22.59
|
11.7
|
14.5
|
3.8
|
DST-3072
|
M3.0
|
T9
|
|
IDI2325
|
22.60 ~ 25.59
|
13.2
|
15
|
4.25
|
DST-3508
|
M3.5
|
T15
|
|
IDI2628
|
25.60 ~ 28.59
|
14.7
|
15
|
4.5
|
DST-3585
|
M3.5
|
T15
|
|
IDI2932
|
28.60 ~ 33.30
|
16.9
|
18
|
5
|
DST-0510
|
M5.0
|
T20
|
|
|
| |
|
|
| |
|
|
| |
IDP Guide Pad Specification
- Precise pad tip with six-polished surfaces for hole size accuracy
- Good wear materials with a low coefficient of friction for improved guide performance
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Pad
|
Diameter Range
|
W
|
H
|
T
|
R
|
Screw
|
Wrench
|
|
IDI1516
|
14.00 ~ 16.59
|
5.19
|
20
|
2.5
|
7
|
DST-2252
|
M2.5
|
T7
|
|
IDI1718
|
16.60 ~ 18.59
|
5.99
|
23.2
|
3
|
8
|
DST-2555
|
M2.5
|
T7
|
|
IDI1920
|
18.60 ~ 20.59
|
5.99
|
23.2
|
3
|
9
|
DST-2555
|
M3.0
|
T7
|
|
IDI2122
|
20.60 ~ 22.59
|
5.99
|
23.2
|
3.4
|
10
|
DST-2565
|
M3.0
|
T7
|
|
IDI2325
|
22.60 ~ 25.59
|
5.99
|
23.2
|
3.4
|
11
|
DST-2565
|
M3.5
|
T7
|
|
IDI2628
|
25.60 ~ 28.59
|
5.99
|
23.2
|
3.4
|
12
|
DST-2565
|
M3.5
|
T7
|
|
IDI2932
|
28.60 ~ 33.30
|
7.5
|
26
|
3.8
|
14
|
DST-3072
|
M5.0
|
T9
|
|
|
| |
|
|
| |
|
|
| |

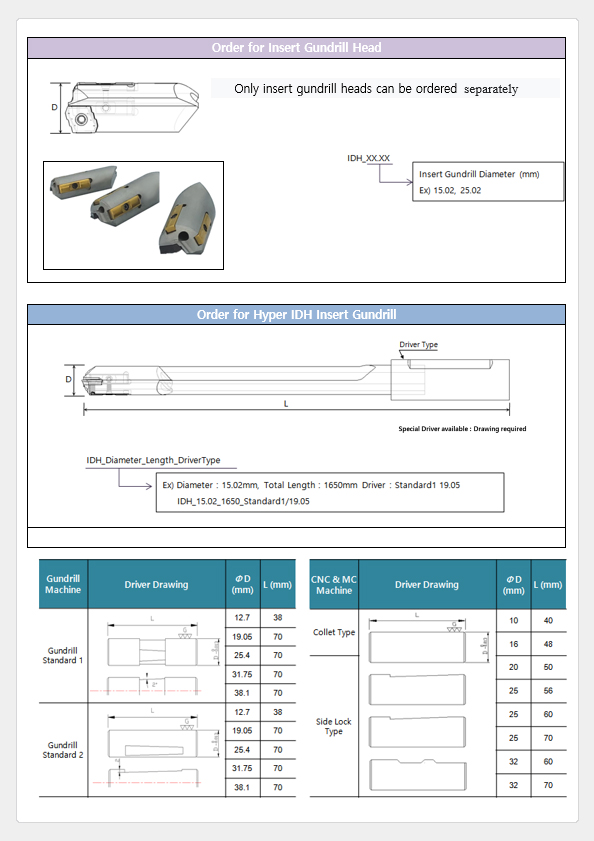

Order for Insert Gundrill Head & IDH Insert Gundrill
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
