STS INSERT BTA Characteristics
- Diameter Range : ¥Õ16mm ~ 33mm
- Special size available
- INSERT BTA having one cutting Insert & one chip-mouth
- Improved chip evacuation through one chip-mouth by dividing long chip into 4 small segments
- Improved BTA body tool life compared with standard Insert BTA consisting of three inserts and two chip-mouths
- Hole drilling accuracy - 0.03 ~ + 0.01 mm by applying polished insert and guide pads
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

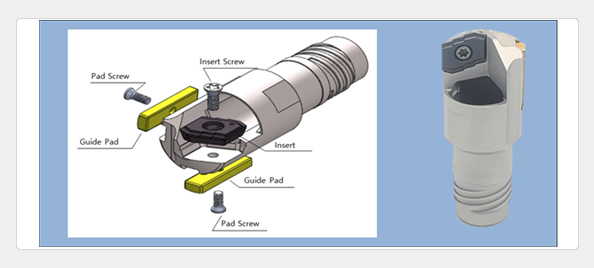

Insert BTA
Diameter(mm)
|
Insert
|
Guide pad
|
|
Insert
|
Insert Screw
|
Wrench
|
Pad
|
Pad Screw
|
Wrench
|
|
16
|
IDI1516
|
DST-2505S
(M2.5)
|
T8
|
IDP1516
|
DST-2252
(M2.2)
|
T7
|
|
17
|
IDI1718
|
DST-2555S
(M2.5)
|
T8
|
IDP1718
|
DST-2555
(M2.5)
|
T7
|
|
18
|
|
19
|
IDI1920
|
DST-3062
(M3.0)
|
T9
|
IDP1920
|
DST-2555
(M2.5)
|
T7
|
|
20
|
|
21
|
IDI2122
|
DST-3072
(M3.0)
|
T9
|
IDP2122
|
DST-2565
(M2.5)
|
T7
|
|
22
|
|
23
|
IDI2325
|
DST-3508
(M3.5)
|
T15
|
IDP2325
|
DST-2565
(M2.5)
|
T7
|
|
24
|
|
25
|
|
26
|
IDI2628
|
DST-3585
(M3.5)
|
T15
|
IDP2628
|
DST-2565
(M2.5)
|
T7
|
|
27
|
|
28
|
|
29
|
IDI2932
|
DST-0510
(M5.0)
|
T20
|
IDP2932
|
DST-3072
(M3.0)
|
T9
|
|
30
|
|
31
|
|
32
|
|
33
|
|
|
| |
|
|
| |
|
|
| |

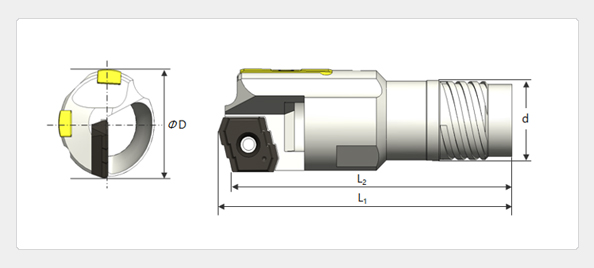

STS INSERT BTA BODY Detail Spec.
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Diameter ¥ÕD
Range(mm)
|
Main Diameter
¥ÕD(mm)
|
L1(mm)
|
L2(mm)
|
d(mm)
|
Drill Tube
|
|
15.60~16.59
|
16
|
63.0
|
60.4
|
12.6
|
14
|
|
16.60~17.70
|
17
|
66.3
|
63.3
|
13.6
|
15
|
|
17.71~18.59
|
18
|
67.3
|
64.3
|
14.5
|
16
|
|
18.60~20.59
|
19
|
67.3
|
64.2
|
15.5
|
17
|
|
20
|
67.3
|
64.2
|
15.5
|
|
20.60~21.80
|
21
|
70.4
|
67.0
|
16
|
18
|
|
21.81~22.59
|
22
|
73.8
|
70.4
|
18
|
20
|
|
22.60~24.10
|
23
|
74.1
|
70.5
|
18
|
|
24
|
74.1
|
70.5
|
18
|
|
24.11~25.59
|
25
|
74.1
|
70.5
|
19.5
|
22
|
|
25.60~26.40
|
26
|
74.2
|
70.3
|
19.5
|
|
26.41~28.59
|
27
|
74.2
|
70.3
|
21
|
24
|
|
28
|
74.2
|
70.3
|
21
|
|
28.60~31.00
|
29
|
81.5
|
77.4
|
23.5
|
26
|
|
30
|
81.5
|
77.4
|
23.5
|
|
31
|
81.5
|
77.4
|
23.5
|
|
31.01~33.30
|
32
|
81.5
|
77.4
|
25.5
|
28
|
|
33
|
81.5
|
77.4
|
25.5
|
|
|
| |
|
|
| |
|
|
| |

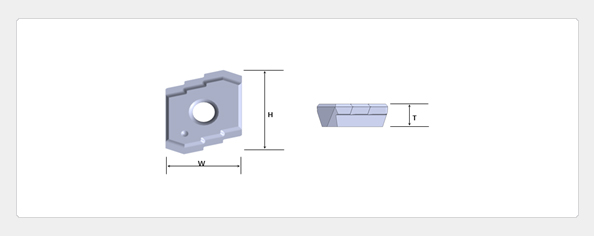

IDI Insert Tip Specification
- Precise Insert tip with five-polished surfaces for hole size accuracy
- Super micro grain carbide & hybrid multi-layer PVD coating for improved deep-hole drilling performance
- Applicable to various materials such as General carbon steel, cast iron, difficult-to-cut material & STS
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Insert
|
Diameter
Range(mm)
|
W
|
H
|
T
|
Screw
|
Wrench
|
|
IDI1516
|
14.00 ~ 16.59
|
8.6
|
10.5
|
2.75
|
DST-2505S
|
M2.5
|
T8
|
|
IDI1718
|
16.60 ~ 18.59
|
9.6
|
11.5
|
3.25
|
DST-2555S
|
M2.5
|
T8
|
|
IDI1920
|
18.60 ~ 20.59
|
10.6
|
13
|
3.45
|
DST-3062
|
M3.0
|
T9
|
|
IDI2122
|
20.60 ~ 22.59
|
11.7
|
14.5
|
3.8
|
DST-3072
|
M3.0
|
T9
|
|
IDI2325
|
22.60 ~ 25.59
|
13.2
|
15
|
4.25
|
DST-3508
|
M3.5
|
T15
|
|
IDI2628
|
25.60 ~ 28.59
|
14.7
|
15
|
4.5
|
DST-3585
|
M3.5
|
T15
|
|
IDI2932
|
28.60 ~ 33.30
|
16.9
|
18
|
5
|
DST-0510
|
M5.0
|
T20
|
|
|
| |
|
|
| |
|
|
| |

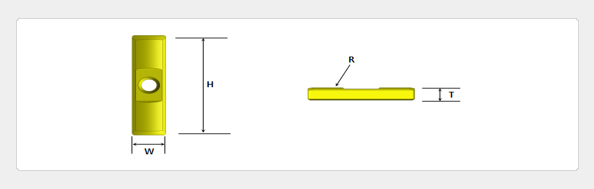

IDP Guide Pad Specification
- Precise pad tip with six-polished surfaces for hole size accuracy
- Good wear materials with a low coefficient of friction for improved guide performance
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Pad
|
Diameter Range
|
W
|
H
|
T
|
R
|
Screw
|
Wrench
|
|
IDI1516
|
14.00 ~ 16.59
|
5.19
|
20
|
2.5
|
7
|
DST-2252
|
M2.5
|
T7
|
|
IDI1718
|
16.60 ~ 18.59
|
5.99
|
23.2
|
3
|
8
|
DST-2555
|
M2.5
|
T7
|
|
IDI1920
|
18.60 ~ 20.59
|
5.99
|
23.2
|
3
|
9
|
DST-2555
|
M3.0
|
T7
|
|
IDI2122
|
20.60 ~ 22.59
|
5.99
|
23.2
|
3.4
|
10
|
DST-2565
|
M3.0
|
T7
|
|
IDI2325
|
22.60 ~ 25.59
|
5.99
|
23.2
|
3.4
|
11
|
DST-2565
|
M3.5
|
T7
|
|
IDI2628
|
25.60 ~ 28.59
|
5.99
|
23.2
|
3.4
|
12
|
DST-2565
|
M3.5
|
T7
|
|
IDI2932
|
28.60 ~ 33.30
|
7.5
|
26
|
3.8
|
14
|
DST-3072
|
M5.0
|
T9
|
|
|
| |
|
|
| |
|
|
