BTA Head
|

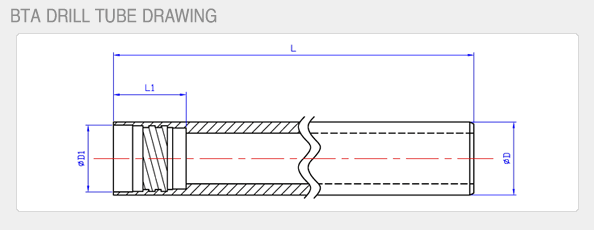

BTA DRILL TUBE
|
|
Diameter range,mm
|
Dimensions,mm
|
|
L
|
D
|
D1
|
L1
|
|
15.60 ~16.70
|
1600
|
14
|
12.6
|
21
|
|
16.71 ~17.70
|
1600
|
15
|
13.6
|
21
|
|
17.71 ~18.90
|
1600
|
16
|
14.5
|
22
|
|
18.91 ~ 20.00
|
1600
|
17
|
15.5
|
22
|
|
20.01 ~ 21.80
|
2600
|
18
|
16
|
25
|
|
21.81 ~ 24.10
|
2600
|
20
|
18
|
26
|
|
24.11 ~ 26.40
|
2600
|
22
|
19.5
|
26
|
|
26.41 ~ 28.70
|
2600
|
24
|
21
|
26
|
|
28.71 ~ 31.00
|
2600
|
26
|
23.5
|
29
|
|
31.01 ~ 33.30
|
2600
|
28
|
25.5
|
29
|
|
33.31 ~ 36.20
|
2600
|
30
|
28
|
29
|
|
36.21 ~ 39.60
|
2600
|
33
|
30
|
36
|
|
39.61 ~ 43.00
|
2600
|
36
|
33
|
36
|
|
43.01 ~ 47.00
|
2600
|
39
|
36
|
36
|
|
47.01 ~ 51.70
|
2600
|
43
|
39
|
36
|
|
51.71 ~ 56.20
|
2600
|
47
|
43
|
40
|
|
56.21 ~ 65.00
|
2600
|
51
|
47
|
40
|
|
60.61 ~ 65.00
|
2600
|
56
|
51
|
40
|
|
|
| |
|
|
|
| |
| |
|
|
| |
 |
|
|
|
